Osram Reversing FX120S-WD

OSRAM LEDriving Reversing FX120S-WD (LEDDL109-WD)

Wide Beam Reversing Light – Road Legal & Built to Last

The OSRAM FX120S-WD is a powerful and compact ECE R23-approved LED reversing light designed to improve rear visibility and safety during reversing, even in the darkest environments. With a wide 45° beam angle and output of 1100 lumens, this rugged auxiliary light enhances confidence when maneuvering any vehicle in tight or dark spaces.

🔧 Technical Specifications

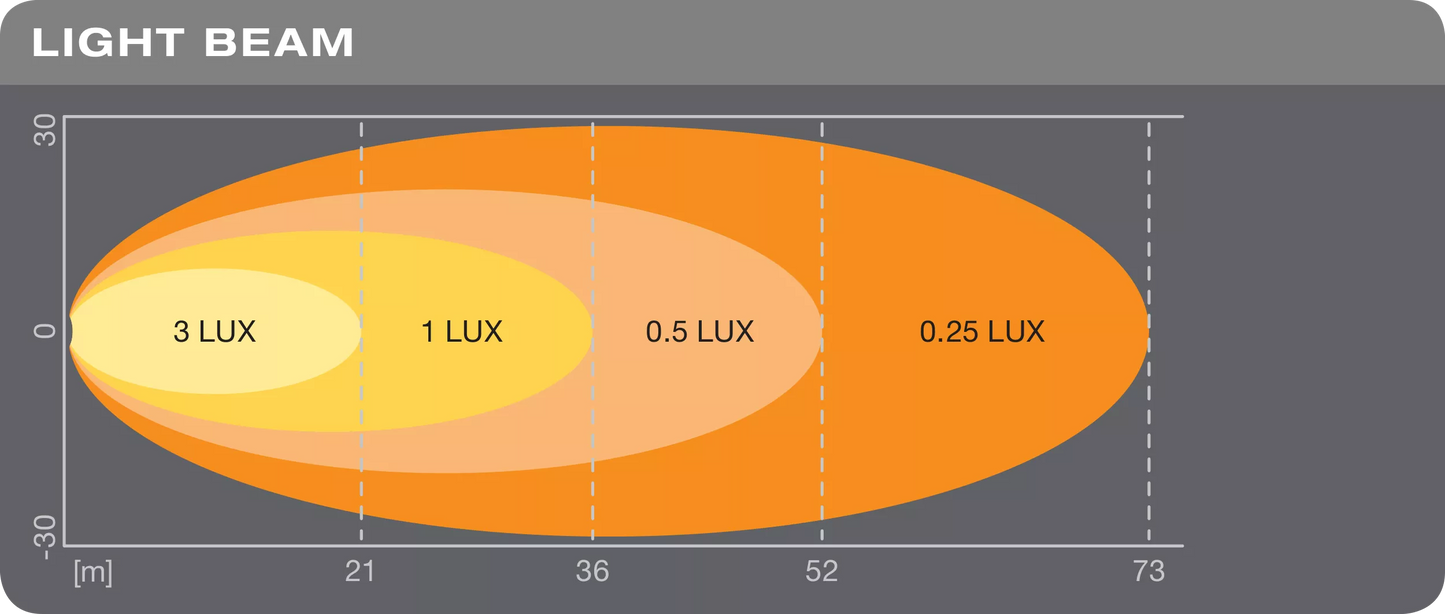

• Light Distance: 73m @ 0.25 lux / 36m @ 1 lux
• Brightness: 1100 lumens (hot)
• Color Temperature: 6000K (cool white)
• Beam Angle: 45° wide beam
• Power Consumption: 15W
• Input Voltage: 12V / 24V systems compatible
• IP Rating: IP69K – highest level of protection against water & dust
• ECE Compliance: R23 – Road legal reversing function
• EMC/EMI Compliance: ECE R10
• Polarity Protection: Yes
• Weight: 375g
• LEDs: 13x High-performance OSRAM LEDs
• Lens Material: Unbreakable polycarbonate
• Housing: Lightweight thermoplastic
• Thermal Management: Integrated driver and heat regulation
• Warranty: 5-Year OSRAM Guarantee

🌟 Key Features

• ✅ ECE R23 Certified – Fully road-legal as a reversing light
• 🔦 Wide Beam Spread – 45° beam for full rear illumination
• 🛡️ Extreme Durability – Shatterproof lens & IP69K-rated housing for harsh environments
• ❄️ Smart Performance – Integrated thermal management ensures longevity
• 🧩 Compact & Lightweight – Easy to install on most vehicle types

🚜 Ideal Applications

• Passenger Cars & Bakkies
• Trucks & Trailers
• Off-Road & 4x4 Vehicles
• Caravans, ATVs & UTVs
• Construction & Agricultural Machinery
• Farm & Utility Vehicles

Enhance your reversing visibility and safety with the OSRAM LEDriving FX120S-WD — powerful performance, compact design, and road-legal reliability in one durable package.
