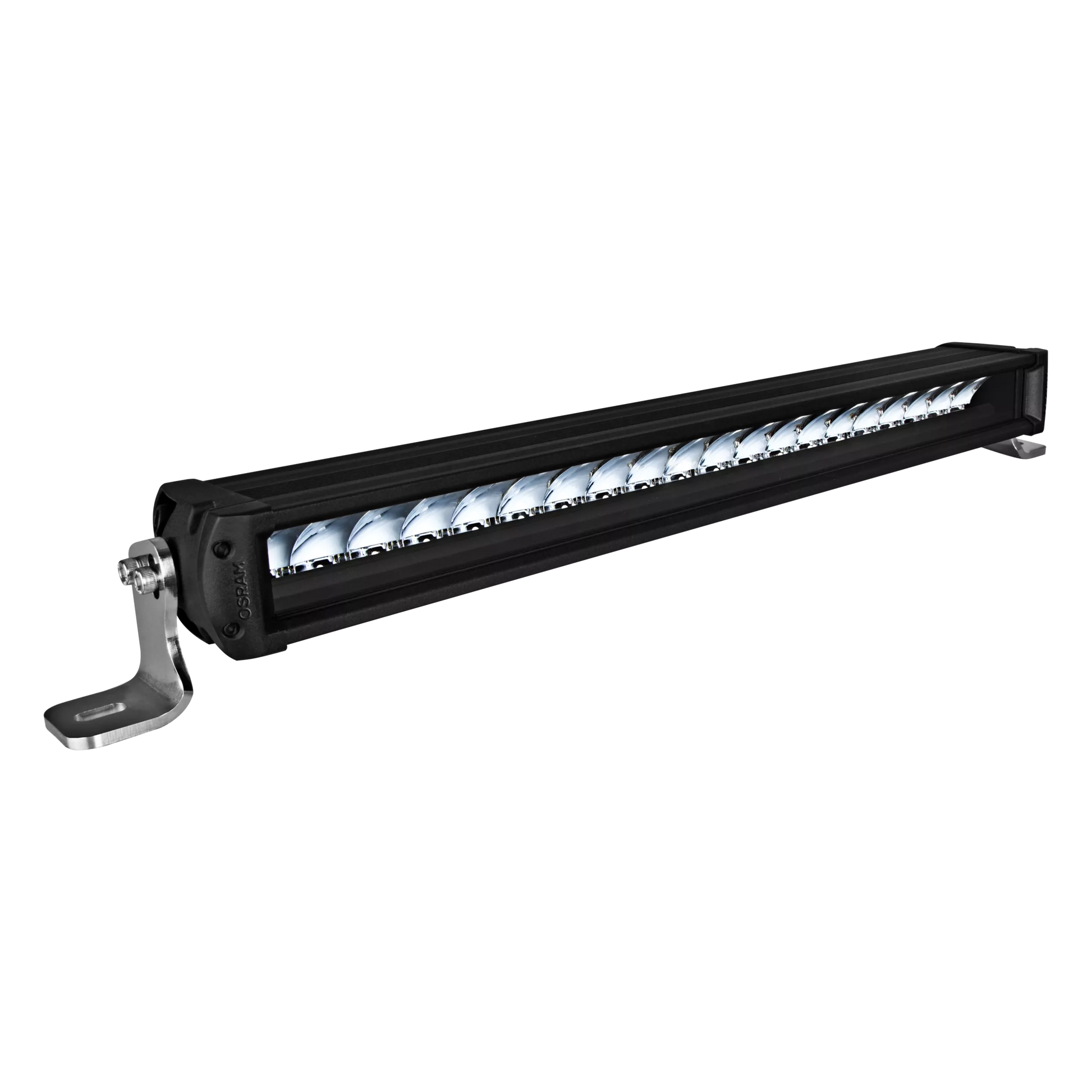

LEDriving LIGHTBAR FX500 - SP 22 inch (Single)

OSRAM LEDriving Lightbar FX500-SP (LEDDL104-SP)

Extreme Distance. Spot Precision. ECE Road-Approved.

Command the road or trail with OSRAM’s FX500-SP — a high-powered LED auxiliary spotlight delivering an extraordinary light throw of up to 895 meters. Designed with a tight 5° spot beam, this ECE-approved lightbar provides intense far-field visibility in a robust, compact housing that thrives in the harshest conditions.

🔧 Technical Specifications

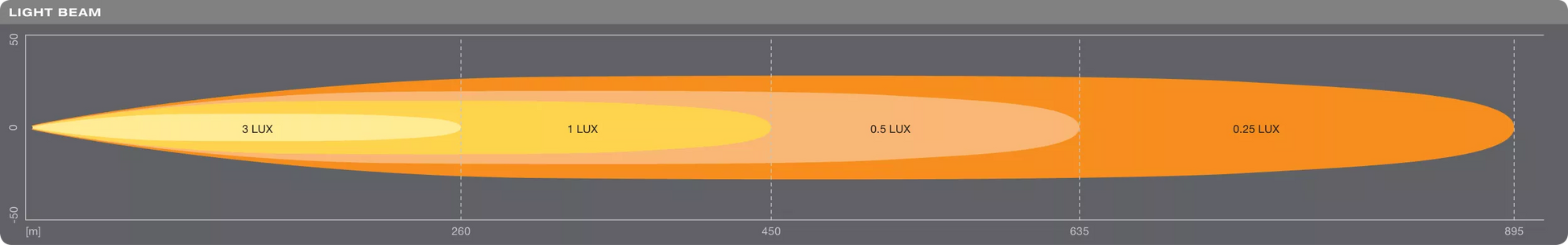

• Light Distance: 895m @ 0.25 lux / 450m @ 1 lux
• Brightness: 5500 lumens (hot)
• Color Temperature: 6000K (cool white)
• Beam Angle: 5°
• Rated Power: 36W
• Input Voltage: 12V / 24V compatible
• IP Protection: IP67 – fully waterproof & dustproof
• ECE Compliance: R112 (ECE Ref. 45) – road legal for auxiliary high beam
• EMC/EMI Compliance: ECE R10
• Protection: Over/under voltage and polarity protection
• LEDs: 20x High-performance OSRAM LEDs
• Lens Material: Unbreakable polycarbonate
• Cable Length: (TBD)
• Warranty: 5-Year OSRAM Guarantee

🌟 Key Features

• ✅ Road-Legal High Beam – ECE-approved for on-road use
• 🔦 Ultra-Focused Spot Beam – Projects a concentrated, long-range light for superior visibility
• 🛡️ Rugged Durability – Built with a shatterproof lens and sealed to IP67 standards
• ❄️ Advanced Thermal Management – Integrated driver regulates heat for long-lasting performance
• 💡 Brilliant Output – 5500 lumens of pure OSRAM intensity with minimal glare
• 🚗 Universal Fitment – Works seamlessly with 12V and 24V systems across vehicle types

🚛 Ideal For

• Cars, Bakkies & SUVs
• 4x4s & Off-Road Builds
• Trucks & Long-Haul Vehicles
• Agricultural & Construction Equipment
• ATVs, UTVs & Caravans

🔌 Recommended Accessory

Pair it with the OSRAM Wire Harness AX 1LS for safe, easy, and professional installation.
