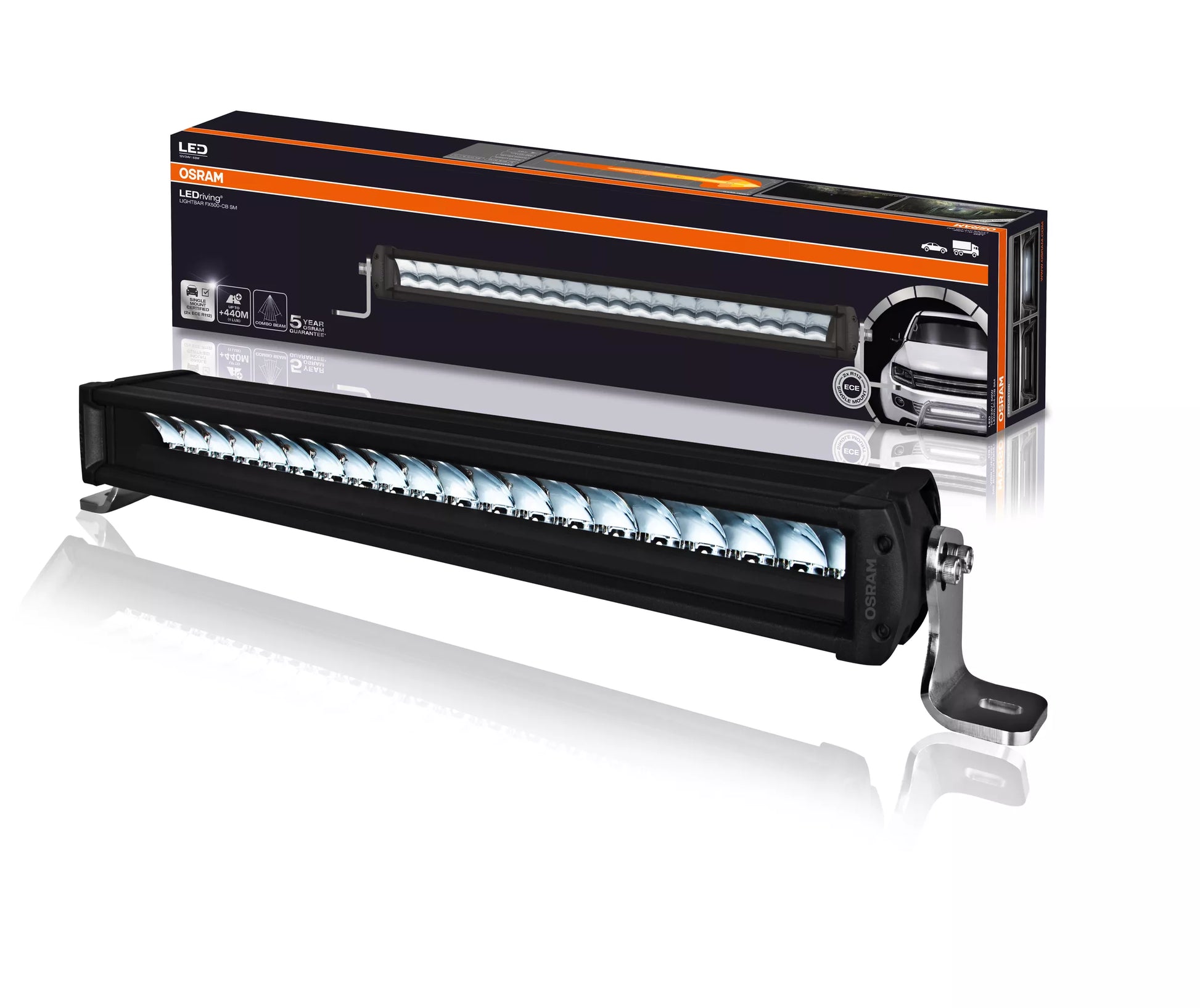

Osram LEDriving LIGHTBAR FX500-CB 22 inch (Single)

(0)

SKU: FX500-CB

Barcode: 4052899595392

R 1,999.00 R 4,483.00

Unit price

OSRAM LEDriving Lightbar FX500-CB (LEDDL104-CB)

Combo Beam Performance. Maximum Brightness. Road-Approved Power.

Delivering an impressive 5500 lumens and a light throw of up to 890 meters, the OSRAM FX500-CB is the ultimate LED lightbar for serious drivers. Its combo beam pattern combines wide near-field illumination with long-range spot performance — making it the perfect choice for both on-road safety and off-road adventure.

🔧 Technical Specifications

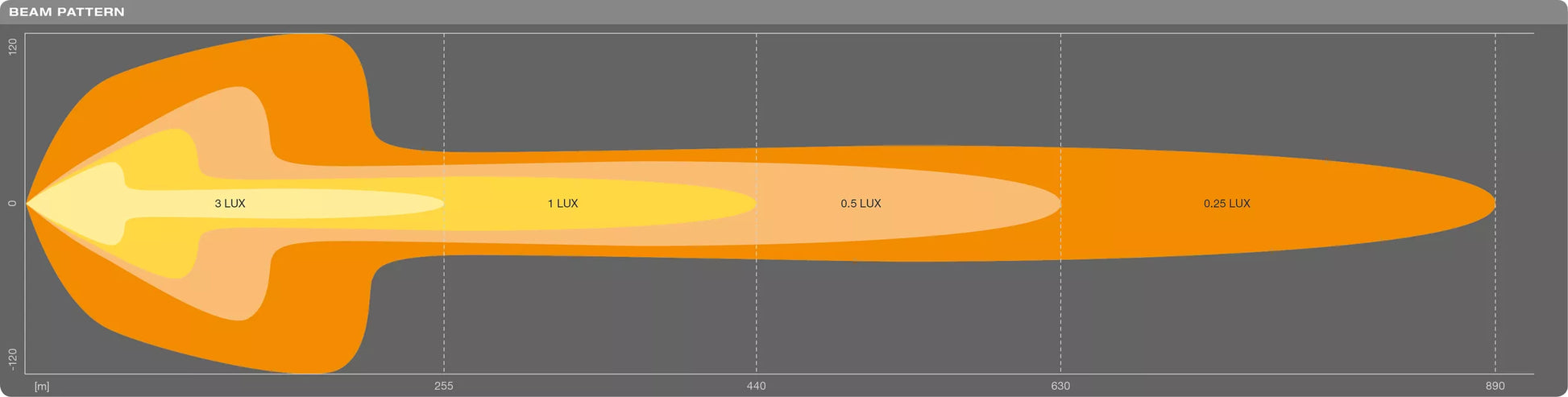

Light Distance: 890m @ 0.25 lux / 440m @ 1 lux
Brightness: 5500 lumens (hot)
Color Temperature: 6000K (cool white)
Beam Angle: 5°
Power Consumption: 68W
Input Voltage: 12V / 24V systems compatible
IP Rating: IP67 – Water and dust resistant
Lens: Unbreakable polycarbonate
Cable Length: 100cm
Weight: 2250g
ECE Compliance: R112 (Ref. 45) – Road legal auxiliary high beam
EMC/EMI Compliance: ECE R10
Protection Features: Over/under voltage & polarity protection
LEDs: 20x High-performance OSRAM LEDs
Warranty: 5-Year OSRAM Guarantee

🌟 Key Features

✅ ECE Approved Combo Beam – Road-legal auxiliary high beam with both wide and long-range lighting
🔦 Dual Function Beam Pattern – Seamlessly combines near-field spread and far-field reach
🛡️ Built to Last – Sealed to IP67 and built with a shatterproof lens for harsh environments
❄️ Smart Thermal Management – Integrated driver and heat regulation for optimal performance
⚡ Reliable Protection – Polarity and voltage safeguards to ensure consistent output
🚗 Universal Use – Compatible with 12V/24V systems for cars, trucks, and utility vehicles

🚜 Ideal Applications

Cars & Bakkies
4x4 & Off-Road Vehicles
Trucks & Commercial Fleets
Agricultural & Construction Machinery
ATVs, UTVs & Caravans

🔌 Recommended Accessory

Pair with the OSRAM Wire Harness AX 1LS for safe, secure, and professional installation.

In stock and ready to ship

30-day satisfaction guarantee

In stock

Quantity

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Description

OSRAM LEDriving Lightbar FX500-CB (LEDDL104-CB)

Combo Beam Performance. Maximum Brightness. Road-Approved Power.

🔧 Technical Specifications

Light Distance: 890m @ 0.25 lux / 440m @ 1 lux
Brightness: 5500 lumens (hot)
Color Temperature: 6000K (cool white)
Beam Angle: 5°
Power Consumption: 68W
Input Voltage: 12V / 24V systems compatible
IP Rating: IP67 – Water and dust resistant
Lens: Unbreakable polycarbonate
Cable Length: 100cm
Weight: 2250g
ECE Compliance: R112 (Ref. 45) – Road legal auxiliary high beam
EMC/EMI Compliance: ECE R10
Protection Features: Over/under voltage & polarity protection
LEDs: 20x High-performance OSRAM LEDs
Warranty: 5-Year OSRAM Guarantee

🌟 Key Features

✅ ECE Approved Combo Beam – Road-legal auxiliary high beam with both wide and long-range lighting
🔦 Dual Function Beam Pattern – Seamlessly combines near-field spread and far-field reach
🛡️ Built to Last – Sealed to IP67 and built with a shatterproof lens for harsh environments
❄️ Smart Thermal Management – Integrated driver and heat regulation for optimal performance
⚡ Reliable Protection – Polarity and voltage safeguards to ensure consistent output
🚗 Universal Use – Compatible with 12V/24V systems for cars, trucks, and utility vehicles

🚜 Ideal Applications

Cars & Bakkies
4x4 & Off-Road Vehicles
Trucks & Commercial Fleets
Agricultural & Construction Machinery
ATVs, UTVs & Caravans

🔌 Recommended Accessory

Pair with the OSRAM Wire Harness AX 1LS for safe, secure, and professional installation.
