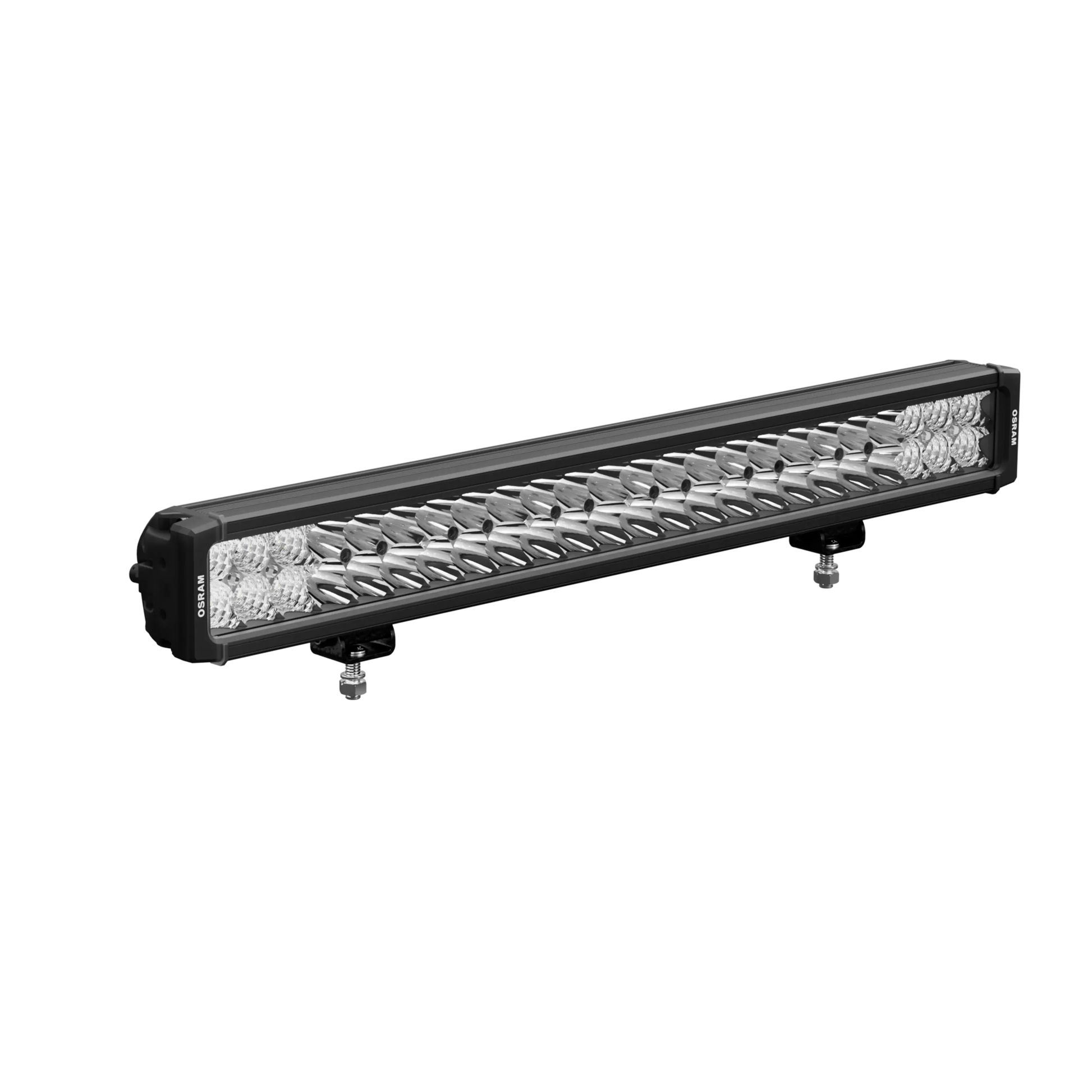

LEDriving® LIGHTBAR VX500-CB 22-inch

OSRAM LEDriving Lightbar VX500-CB – LEDDL118-CB

Combo Beam LED Lightbar | Up to 473m Range | ECE Approved

Power through darkness with confidence using the OSRAM LEDriving VX500-CB, a high-performance combo beam LED lightbar built for both on-road and off-road applications. Featuring an output of 4100 lumens and a light range of up to 473 meters, this rugged bar delivers optimized visibility in both near-field and long-distance conditions.

Perfect for professional, commercial, and off-road use — the VX500-CB combines power, durability, and road-legal compliance in one compact package.

🔧 Technical Specifications:

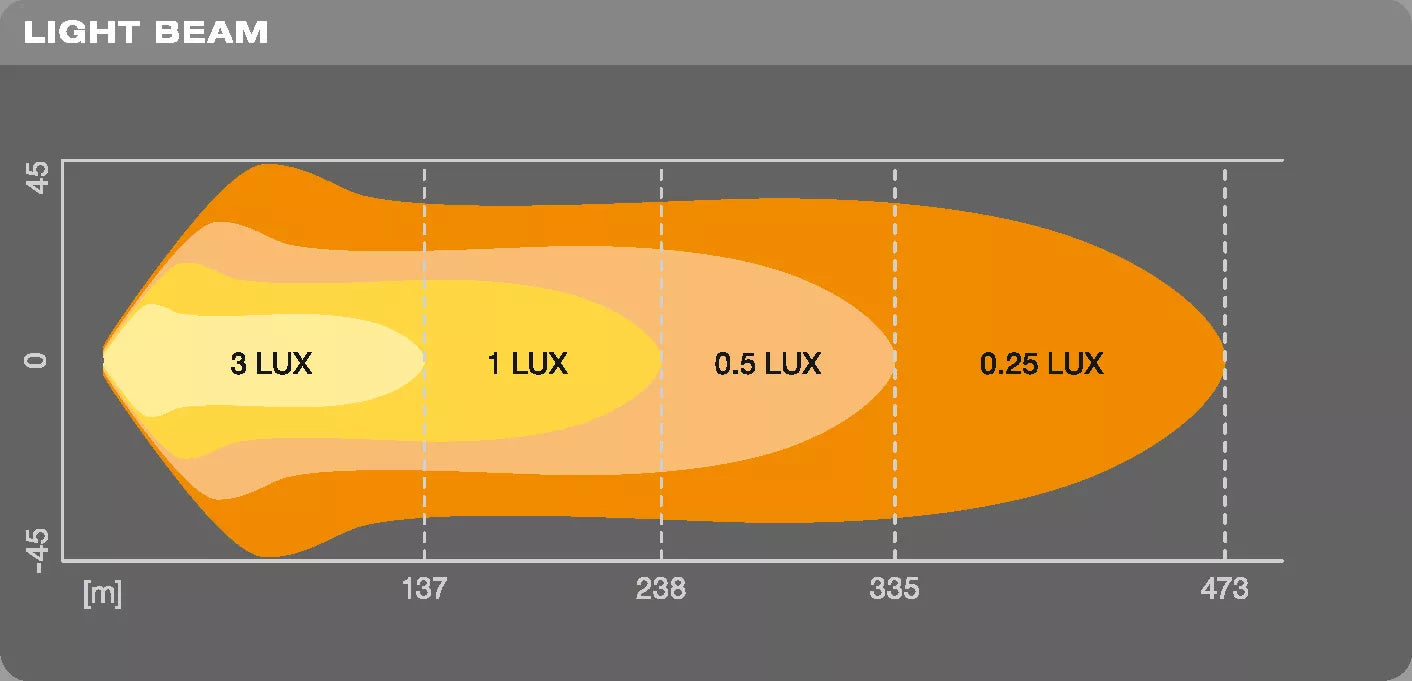

• Light Distance: 473m @ 0.25 lux | 238m @ 1 lux
• Hot Lumen Output: 4,100 lm
• Color Temperature: 6000K (Cool White)
• Rated Power: 55W
• Voltage: 12V / 24V compatible
• Protection Class: IP67 – dust & waterproof
• ECE Certified: R112 (Ref. No. 17.5), EMC: ECE R10
• Polarity Protection: Yes
• Cable Length: 45cm
• Weight: 2.14 kg

✅ Key Features:

• Combo beam pattern – excellent near and far field illumination
• Shatter-proof polycarbonate lens – built to withstand harsh environments
• Fully ECE compliant auxiliary high beam
• Integrated driver and thermal management system for durability
• Over and under-voltage protection for added reliability
• OSRAM-backed 2-year guarantee

🚛 Versatile Mounting for Multiple Applications:

Ideal for:

• Cars, 4x4s, SUVs
• Trucks and transport vehicles
• Agricultural and construction machinery
• Off-road vehicles, ATVs, caravans, and utility equipment

Recommended Accessory:
Use with the OSRAM Wire Harness AX 1LS for professional and safe installation.
