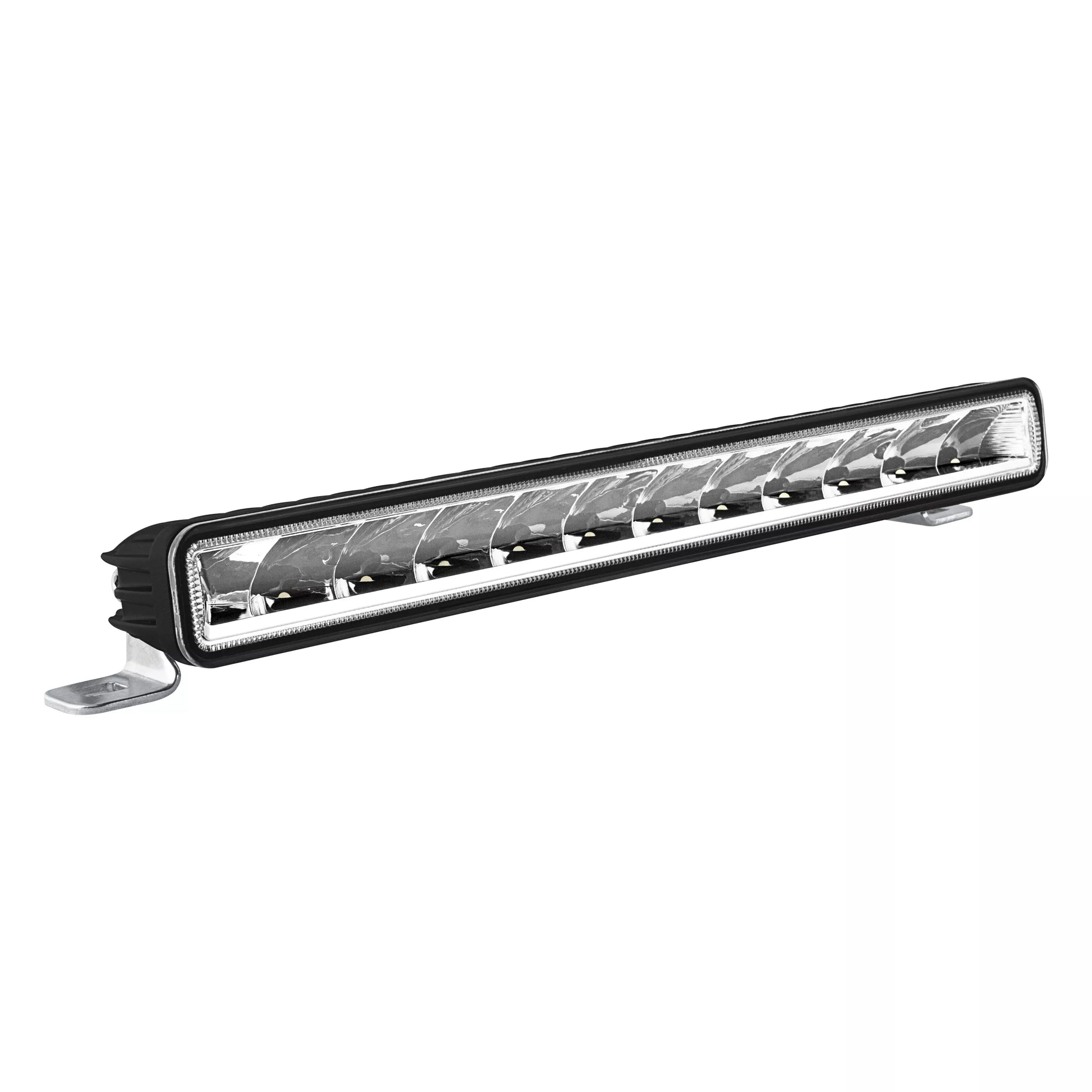

LEDriving® LIGHTBAR SX300-SP - 12 inch UltraSlim (Single)

OSRAM LEDriving Lightbar SX300-SP (LEDDL106-SP)

Vibrant LED Light for More Safety on the Road

Unlit streets, off-road trails, and rural paths pose a greater risk to drivers and vehicles. The OSRAM LEDriving Lightbar SX300-SP is engineered to enhance visibility, boost safety, and deliver rugged durability under the harshest conditions.

✅ Key Technical Specifications

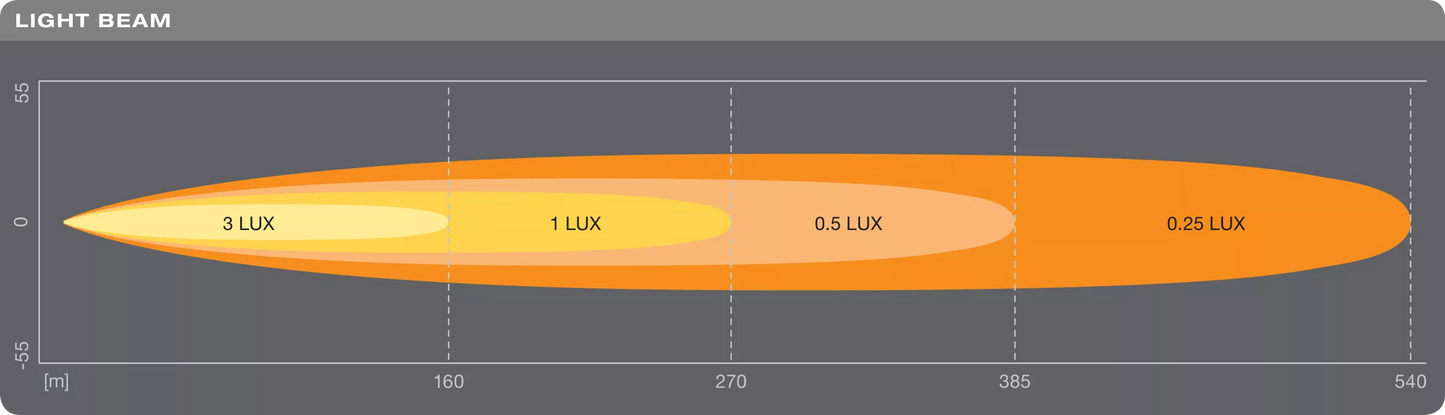

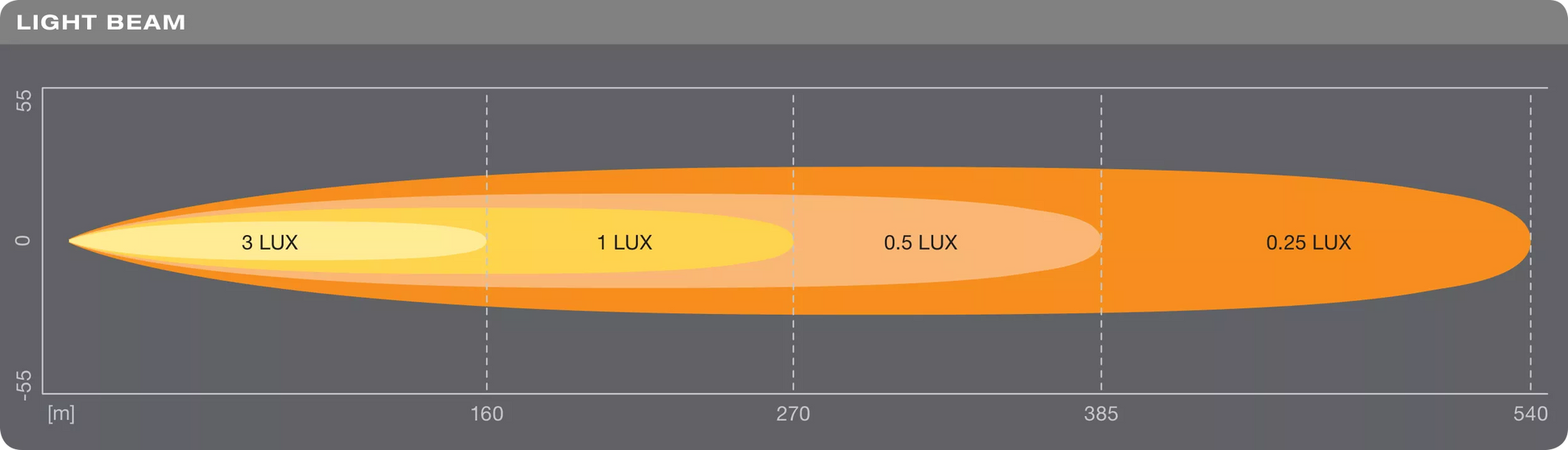

• Light Distance: 540m @ 0.25 lux / 270m @ 1 lux
• Hot Lumen Output: 2600lm
• Color Temperature: 6000K (Cool White)
• Beam Angle: 8° (focused high beam)
• Rated Input Power: 29W
• Input Voltage: 12/24V compatible
• Lifetime: 5,000 hours
• Ingress Protection: IP69K (dustproof & high-pressure waterproof)
• EMC/EMI: Certified to ECE R10
• ECE Compliant: R112 (Ref. 20) – road legal in many regions
• Vibration Tested: IEC 60068-2-6 certified
• Ambient Operating Range: -30°C to +60°C
• Cable Length: 45cm
• Weight: 700g

💡 Top Features

• Fully ECE-Compliant High Beam – Legal for on-road use in compliant regions
• Compact & Powerful – 12 high-performance OSRAM LEDs with integrated driver and thermal management
• Unbreakable Lens – Heavy-duty polycarbonate lens resists shocks, impacts, and harsh environments
• Smart Electronics – Includes over/under-voltage protection for consistent operation
• Slim Profile – Allows flexible installation on cars, trucks, and specialty vehicles
• Beam Distance of up to 540m – Spot-style 8° beam ensures long-range clarity
• 5-Year OSRAM Guarantee – Long-lasting peace of mind

🚗 Recommended Applications

• Passenger Cars
• Trucks & Trailers
• Off-Road Vehicles (4x4, ATVs)
• Agricultural Machinery
• Construction & Utility Vehicles
• Caravans and RVs

🔌 Recommended Accessory:
For safe and optimal installation, we recommend using the OSRAM AX 1LS Wire Harness, specifically designed for single LED lightbar setups.
